Penck’s Model of the Cycle of Erosion | Disasters | Geography

In this article we will discuss about the Penck’s model of the cycle of erosion.

It may be pointed out that German scientist Walther Penck pleaded for the rejection of Davisian model of geographical cycle based on time-dependent series of landform development and presented his own model of ‘morphological system’ or ‘morphological analysis’ for the explanation of landscape develop­ment.

The main goal of Penck’s model of morphologi­cal system was to find out the mode of development and causes of crustal movement on the basis of exogenetic processes and morphological characteristics. The ref­erence system of Penck’s model is that the character­istics of landforms of a given region are related to the tectonic activity of that region.

The landforms, thus, reflect the ratio between the intensity of endogenetic processes (i.e., rate of upliftment) and the magnitude of displacement of materials by exogenetic processes (the rate of erosion and removal of matrials).

Penck is perhaps the most misunderstood geomorphologist of the world. It is not yet sure whether he used the word ‘cycle’ or not in his model of landform development.

Penck’s views could not be known in true sense and could not be interpreted in right per­spective because of:

(i) His incomplete work due to his untimely death,

(ii) His obscure composition in diffi­cult German language,

(iii) Ill-defined terminology,

(iv) Misleading review by W.M. Davis, and

(v) Some contradictory ideas.

According to Penck landform development should be interpreted by means of ratios between diastrophic processes (endogenetic, or rate of uplift) and erosional processes (exogenetic, or rate of vertical incision).

Penck is supposed to have deliberately avoided the use of stage concept in his model of landscape development either to undermine the cyclic concept of W. M. Davis or to present a new model. According to O.D. Von Engeln (1960) “Penck found escape from the concept of cyclic change marked by the stages youth, maturity and old age.” In the place of ‘stage’ he used the term entwickelung meaning thereby development.

Thus, in the place of youth, maturity and old stages he used the terms aufsteigende entwickelung (waxing or accelerated rate of development), gleichformige entwickelung (uniform rate of development) and absteigende entwickelung (wanning or decelerating rate of development).

Penck used the term primarumpf to represent the characteristic landscape before upliftment. Primarumpf is, in fact, initial surface or primary peneplain representing either newly emerged surface from below sea level or a fastenbene or ‘peneplain’ type of land surface converted into featureless land- mass by uplift.

According to Von Engeln (1942) the “primarumpf is a primary peneplain, one which could, in either case, exhibit truncated beds and structures, and yet need never have had a greater altitude or a higher relief.” In other words, primarumpf is the initial landscape with evidences of erosion but with low altitude.

Contrary to the concept of W.M. Davis, ‘that landscape is a function of structure, process and time (stage)’, Walther Penck postulated that, ‘geomorphic forms are an expression of the phase and rate of uplift in relation to the rate of degradation.

It is assumed that interaction between the two factors, uplift and degrada­tion, is continuous. The landforms observed at any given site give expression to the relation between the two factors (uplift and degradation) that has been or is in effect, and not to a stage in a progressive sequence’.

The landscape development (we may say the cycle of erosion) begins with the upliftment of primarumpf (initial landscape with low height and relief) representing an initial featureless broad land surface. In other words, primarumpf is initial geomorphic unit for the beginning of the development of all sorts of landforms. Penck is supposed to have assumed varying rates of upliftment of primarumpf for the development of landforms.

In the beginning the uplift is character­ized by exceedingly slow upheaval of long duration and thereafter the rate of uplift is accelerated and ultimately it stops after passing through the intermedi­ate phases of uniform and decelerating rates of up­heaval.

In fact, “the most tectonic movements began and ended slowly, and that the common pattern of such movements involved a slow initial uplift, an acceler­ated uplift, a deceleration in uplift and, finally, quies­cence”.

The initial uplift begins with regional updoming and the landform development passes through the following three phases:

(1) Aufsteigende Entwickelung:

Aufsteigende entwickelung means the phase of waxing (accelerating) rate of landform develop­ment. Initially, the land surface rises slowly but after some time the rate of upliftment is accelerated. Be­cause of upliftment and consequent increase in chan­nel gradient, flow velocity and kinetic energy and of course increase in discharge (not due to uplift) the rivers continue to degrade their valleys with acceler­ated rate of down-cutting (valley deepening or incision) but the rate of upliftment far exceeds the rate of valley deepening (say degradation of uplifted landmass).

Continuous active downcutting and valley deepening results in the formation of deep and narrow V shaped valleys. As the rate of uplift (aufsteigende entwickelung) continues to increase the V shaped valleys are further deepened and sharpened. Since valley deepening does not keep pace with the upliftment of landmass the absolute height continues to increase.

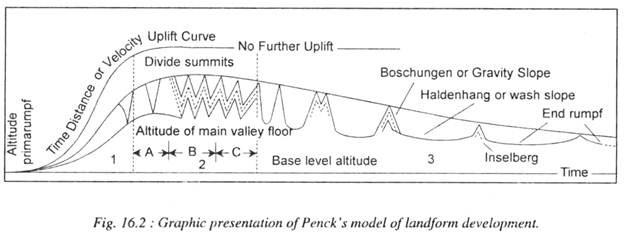

In other words, the altitudes of divide summits as well as the altitudes of valley bottoms continue to increase as the rate of upliftment far exceeds the rate of vertical erosion (fig. 16.2) but the relative or available reliefs continue to increase due to ever-increasing rate of vertical erosion or valley deepening. Thus, both maximum altitude (absolute height from sea level) and maximum relief (relative) increase (1 in fig. 16.2). The slopes of valley sides are convex in plan.

The valley side slopes are continuously steep­ened due to continued valley deepening. The radius of convexity of slopes is reduced with passage of time due to parallel retreat of the steeper slope segments. With the passage of time and more accelerated uplift and degradation the primary peneplain or say primarumpf is surrounded by a series of benches called as piedmont treppen. Each of such benches develops as a piedmont flat, called in German as piedmontflache on the slowly rising margins of the dome.

(2) Gleichformige Entwickelung:

Gleichformige entwickelung means uniform development of landforms. This phase may be divided into 3 subphases on the basis of rate of uplift and degradation (2 in fig. 16.2).

Phase (a):

Is characterized by still accelerated rate of uplift. Absolute height still increases because the rate of erosion is still less than the rate of upliftment.

Altitudes of both summits of water divides and valley floors continue to increase but at relatively lower rate than in the phase of Aufsteigende entwickelung. Maximum altitude (absolute relief) is attained but relative relief remains constant because the rate of valley deepening equals the rate of lowering of divide summits. The valley sides are characterized by straight slopes (2a in fig. 16.2).

This phase is called the phase of uniform development probably because of uniform rate of valley deepening and lowering of divide summits.

Phase (b):

Altitude (absolute relief) neither increases nor decreases i.e. remains constant due to matching of upliftment by the lowering of divide summit due to denudation. It means that upliftment still continues.

Relative relief also remains constant because the rate of erosion of divide summits matches with the rate of valley deepening while both are up­lifted uniformly. The slopes of valley sides are still straight as in phase 2a because of parallel retreat. This phase is, thus, characterized by constant absolute and relative reliefs and thus uniform development of landforms.

Phase (c):

Upliftment of the land stops completely. Absolute reliefs or altitudes of summit divides start decreasing because of absence of upliftment but continued erosion of summits of divides. Relative reliefs also remain constant because the rate of the lowering of divide summits equals the rate of valley deepening. Thus, this subphase is also characterized by uniform development of landscape.

(3) Absteigende Entwickelung:

Absteigende entwickelung means wanning development of landscape during which the landscape is progressively dominated by the erosional process of lateral erosion and consequent valley widening and marked decrease in the rate of valley deepening through vertical downcutting.

This phase is marked by progres­sive decline of landforms. Absolute relief (altitude from sea level) decreases remarkably because of total absence of upliftment but continued downwasting of divide summits. Relative relief also decreases because the divide summits are continuously eroded down and lowered in height while downcutting of valley floor decreases remarkably due to decrease in channel gra­dient and kinetic energy. Parallel retreat of valley side slopes still continues.

Now the valley side slope con­sists of two segments. The uppermost segment main­tains its steep angle inspite of continuous lowering of ridge crests. This slope is called gravity slope or boschungen. The lower segment of the valley sides is called wash slope or haldenhang. Haldenhang, com­posed of talus materials of lower inclination, is formed at the base of the valley sides due to rapid parallel retreat of gravity slope or boschungen and consequent elimination of much of the convex waxing slopes.

Divide summits are continuously lowered by the inter­section of the retreating boschungen of adjoining val­leys. Thus, the intersection of boschungen and haldenhang produces sharp knick (break in slope). Haldenhang or wash slope continues to expand at the cost of upper gravity slopes. In the advanced stage of the phase of absteigende entwickelung the gravity slopes or boschungen are reduced to steep-sided coni­cal residuals called inselbergs (fig. 16.2).

Eventually, inselbergs are also consumed and the whole landscape is dominated by a series of concave wash slopes or haldenhang. Such extensive surface produced at the end of absteigende entwickelung is called ‘endrumpf’, which may be considered equivalent to Davis’ peneplain.

Evaluation of Penck’s Model:

The Penck’s model of landscape development, as pointed out in the beginning, could not be correctly interpretted because of its publication in obscure Ger­man language and wrong interpretation of his ideas by English translators. Penck’s morphological system was severely criticised in the USA in the same way as the ‘geographical cycle’ was criticised in Germany.

Penck’s concepts of parallel retreat of slope and con­tinued crustal movements became the most sensitive points of attacks by American geologists. It may be pointed out that earlier translation of Penck’s work in English revealed that Penck believed in parallel retreat of slopes but subsequent English translations showed that Penck believed in slope replacement wherein each upper slope unit of hillslope and valley sides was considered to be replaced by lower slope unit of gentler slope.

It may be, thus, forwarded that most of the criticisms of Penck’s morphological system came out of the faulty interpretations of his views. Some of the American critics stooped down to such an extent that they remarked that “his peculiar notions owed to his incomplete recovery from a head wound suffered in World War I”. His concept of long continued upliftment and tectonic speculations could not find any support but his con­cepts of slope development and weathering processes are definitely of much geomorphological significance.
